DUCAT-2,5 - Short disc harrow

DUCAT-2,5 - Short disc harrow

The DUCAT short disc harrows with a working width of 2.5 m are center-mounted machines that are easy to transport and do not require any additional adjustment.

  • 2.5 m

    Working width

  • min 80 hp

    Tractor power

  • mounted

    Coupling with tractor

  • Information

  • Characteristics

  • Downloads

DUCAT-2,5

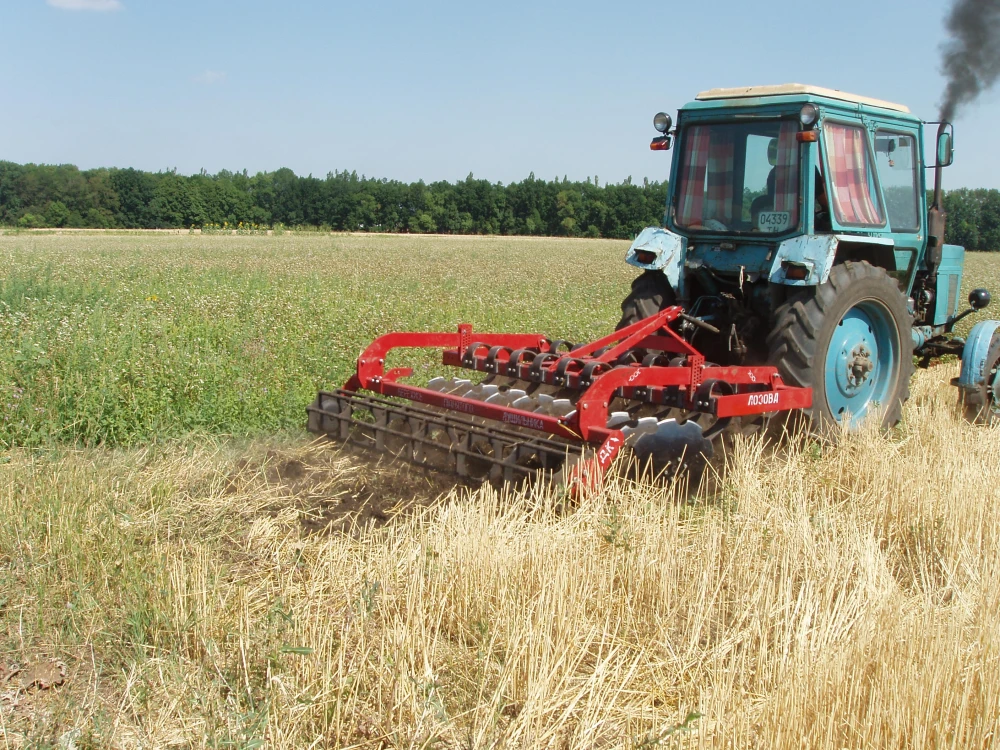

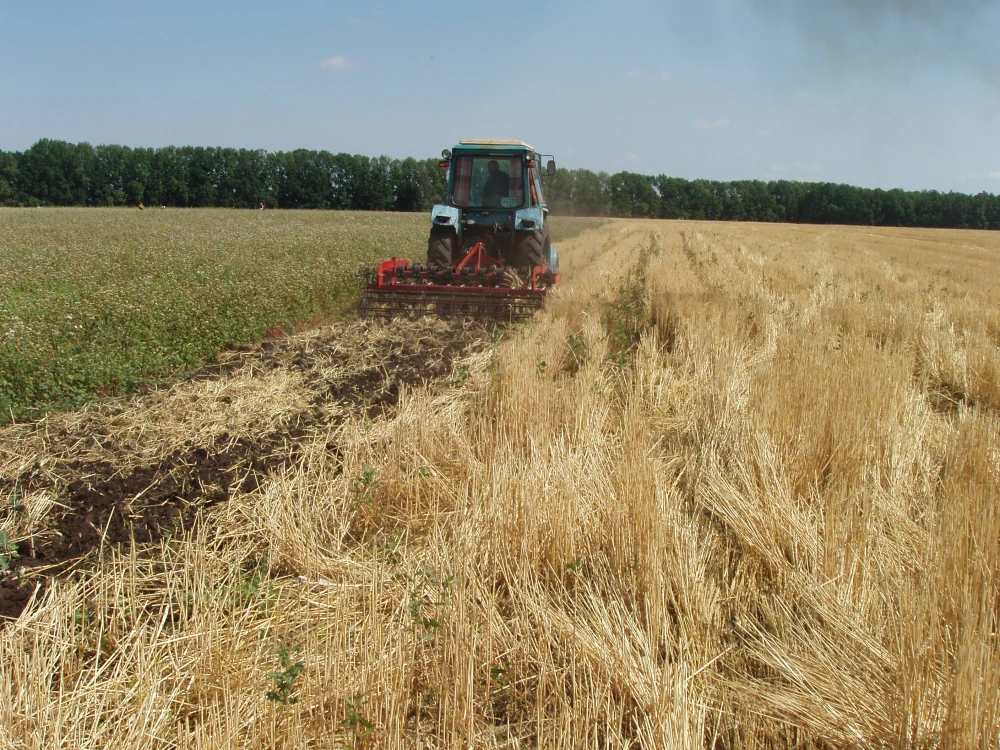

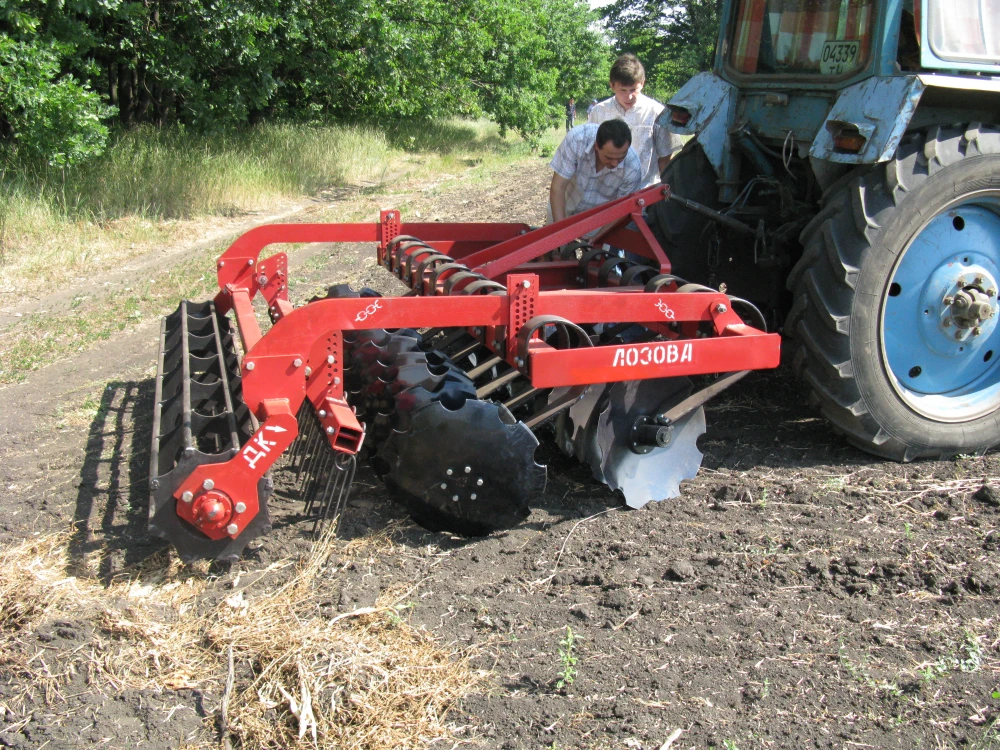

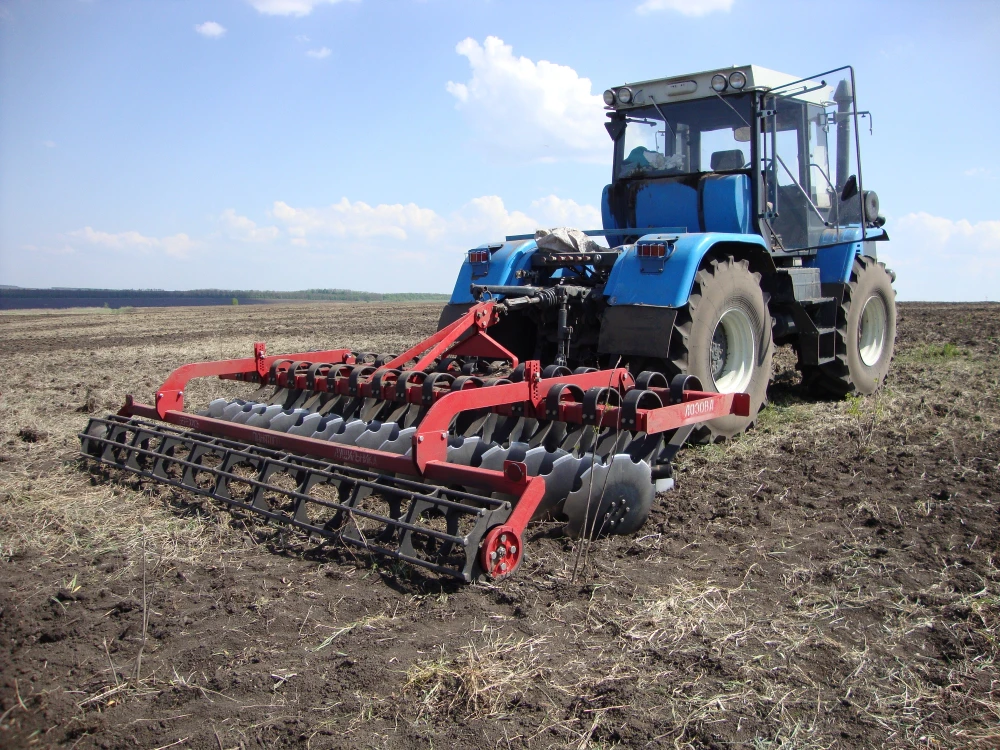

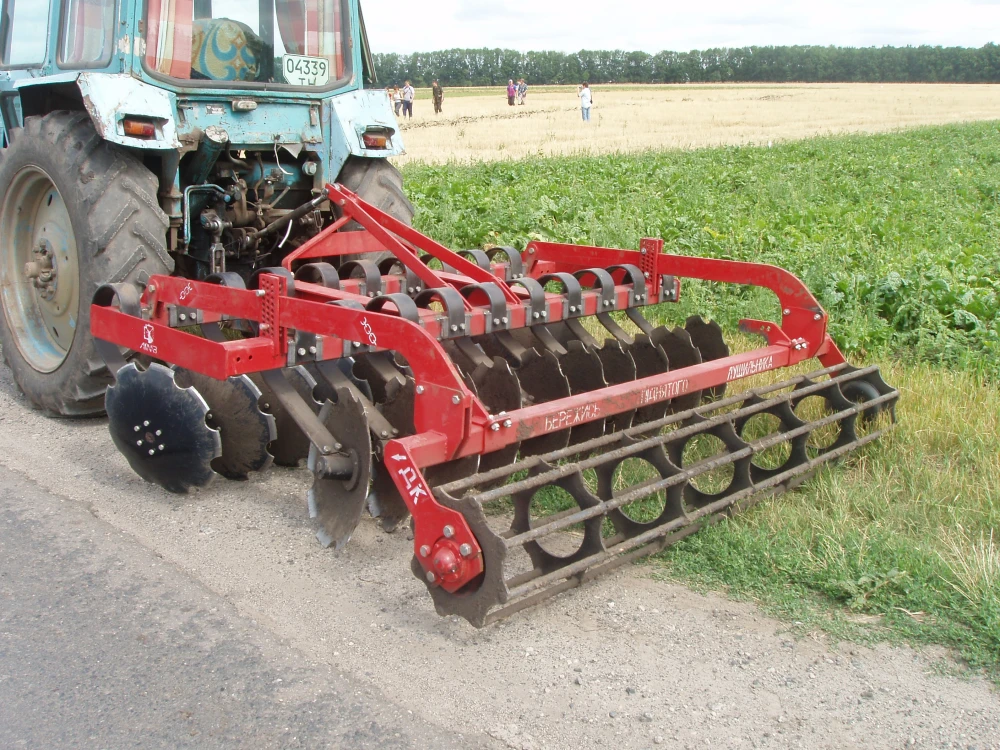

The DUCAT short disc harrows with a working width of 2.5 m are mounted machines with center frames that are easy to transport and do not require any additional adjustment.

The units are maintenance-free (they have no lubrication points at all), which is very convenient for small farms. Nothing is lubricated, nothing is adjusted, nothing is tightened. By purchasing such a machine, the farmer significantly increases the efficiency of tillage, while significantly reducing costs.

Advantages and features:

  • Compactness and maneuverability: The working width of 2.5 m makes the model ideal for working in small and medium-sized fields, providing easy maneuverability and transportation.

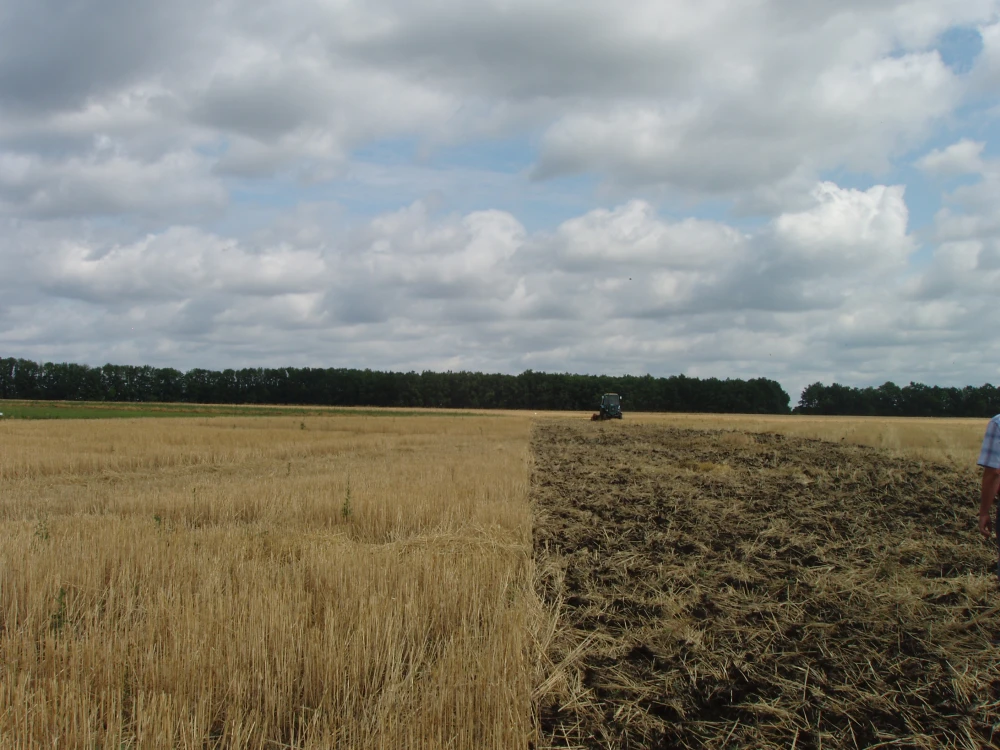

  • Efficient cultivation: Provides high-quality surface tillage, crumbling of residues and weed control.
  • Versatility: Suitable for use with small tractors and on farms with limited space.

Advantages of DUCAT disc harrows

  DUCAT-2,5 United States customary units
Working width, 2,5 m 8 ft
Tractor power 80 hp
Coupling with tractor mounted
Basic weight 1051 kg 2317 lb
Number of discs 20
Disc diameter 566 mm 22 ''
Overload protection 3D-protection
Operating depth, 3-12 cm 1.2-5 ''
Operating speed, 10...17 km/h 6-10 mph
Efficiency до 3,09 ha/h 7,6 ac/h
Fuel consumption 4,5...5,5 l/ha 1-1.3 gal
Transport dimensions
(length x width x height)
2456 х 2691 х 1450 mm
