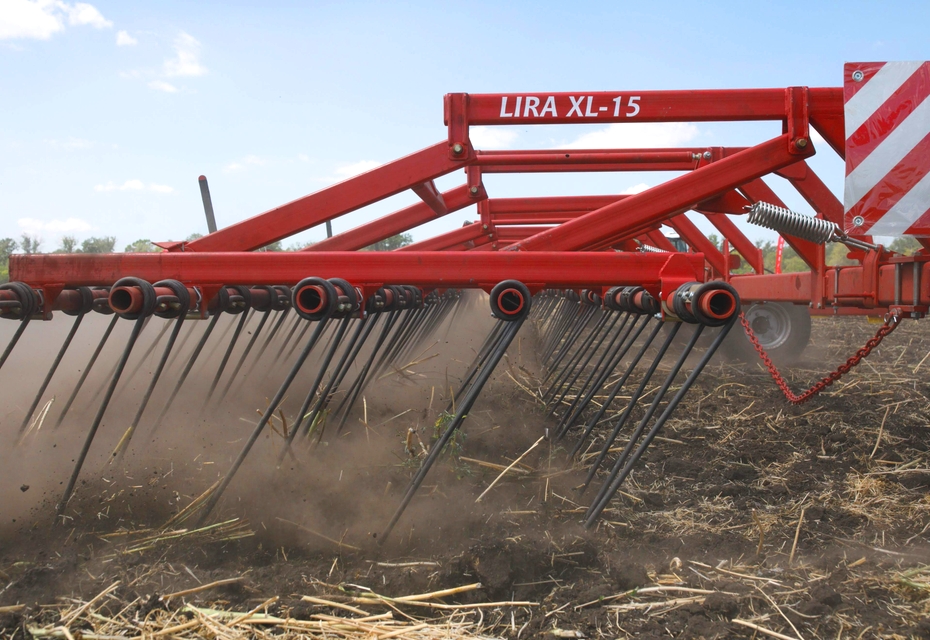

LIRA XL-15
Heavy tooth harrow
15
Working width
from 160 hp
Tractor power
semitrailer
Coupling with tractor
The heavy tooth harrow LIRA XL-21 is designed to work on a large field area (productivity of the tool is more than 25 hectares per hour!).
More
LIRA XL-21
Heavy tooth harrow
21
Working width
from 300 hp
Tractor power
semitrailer
Coupling with tractor
The heavy tooth harrow LIRA XL-21 is designed to work on a large field area (productivity of the tool is more than 25 hectares per hour!).
More
The LIRA XL base is a frame with five rows of teeth with a diameter of 16 mm and a height of 762 mm, mounted on a parallelogram.
The LOZOVA MACHINERY LIRA XL and LARI harrows have a unified frame design that makes it easy to convert a heavy spring harrow into a plume harrow and vice versa. Thus, by purchasing one tool and a special conversion kit, you get two tools for the price of almost one unit.
When growing crops, farmers face a number of problems, including drying and over-compaction of the soil, waterlogging, soil depletion, and soil pollution. Negative changes in the condition of agricultural land are caused by natural and anthropogenic factors.
In addition to rationalizing the structure of the sown area, which involves a balanced planting of cereals, legumes and oilseeds, smart land management is the best solution to improve the condition of the soil cover and increase soil efficiency and fertility.
A good alternative to single-operator tillage machines with multiple passes is large-format implements that fully meet modern agricultural requirements, such as the LIRA XL heavy tooth harrow.

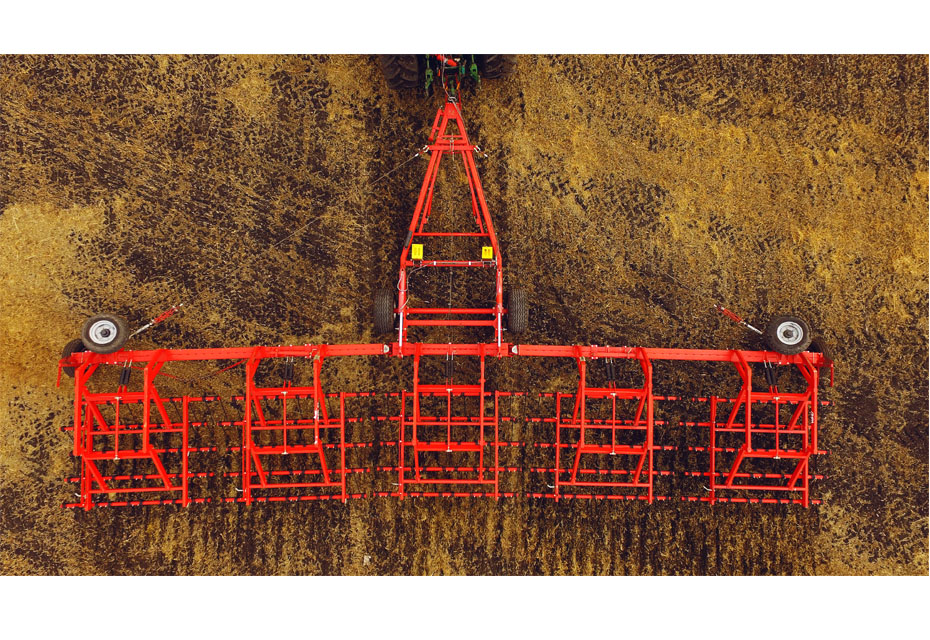

The LIRA XL uses a parallelogram system of independent working sections, which allows you to maintain contact with the soil in case of uneven terrain.
This ensures perfect ground tracking over the entire width of the sections and an even load distribution on each spring unit.

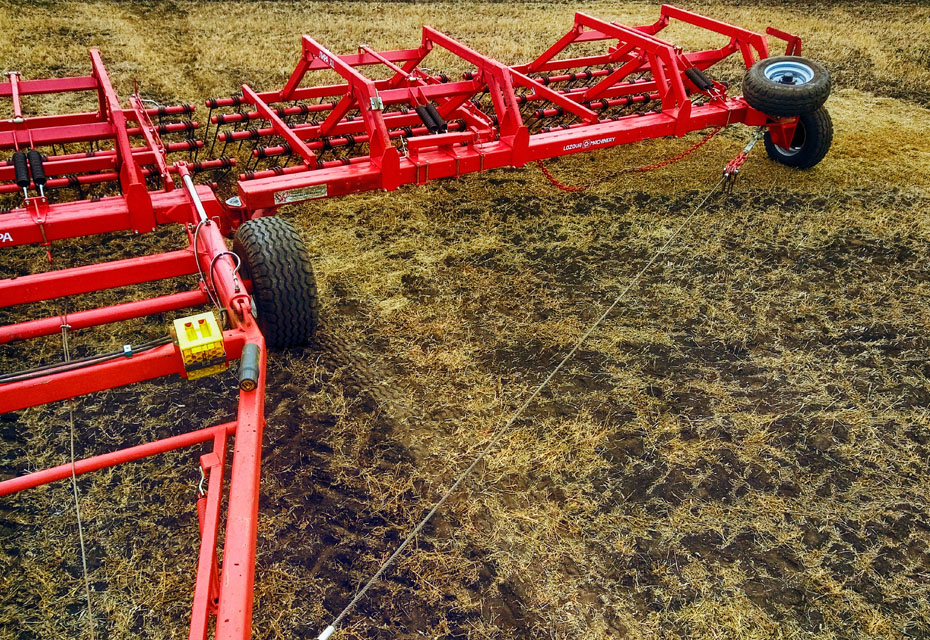

The use of flexible cables significantly simplifies the design, provides additional rigidity to the wings and reduces the stress on the frame.
Thanks to the cables, excellent maneuverability on headlands has been achieved.
The use of cables ensures maximum soil tracking across the entire width of the harrow from edge to edge.
Optimum processing is ensured by the ability to change the angle of the tines. The angle of attack can be adjusted simultaneously on the entire section in the range of 45°-90°.

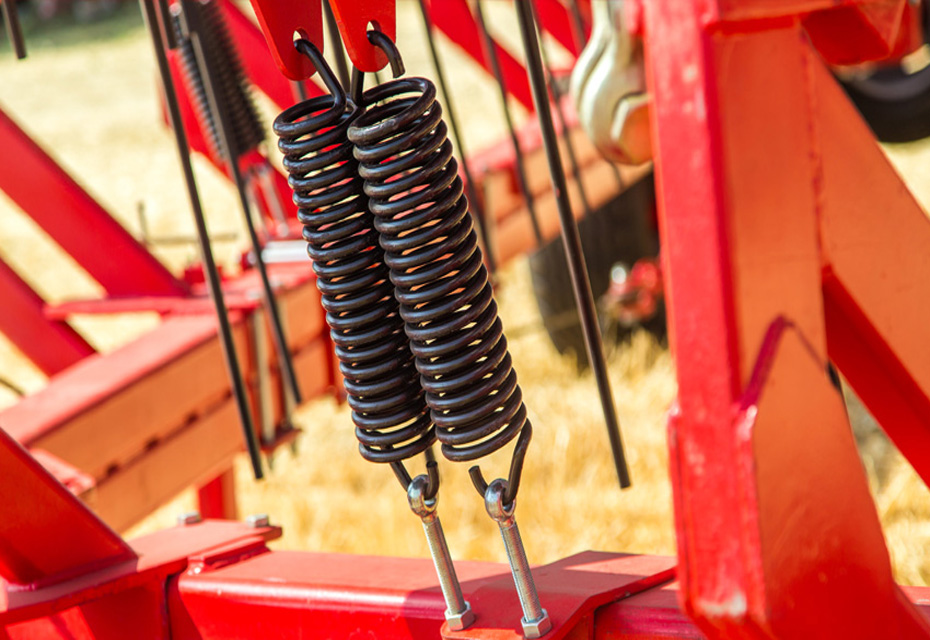

To reduce undesirable oscillations of the sections (bouncing) at high speeds, the holding is provided by a spring block, which also creates the necessary regulating pressure of the working section springs on the ground from 400 to 860 kg.

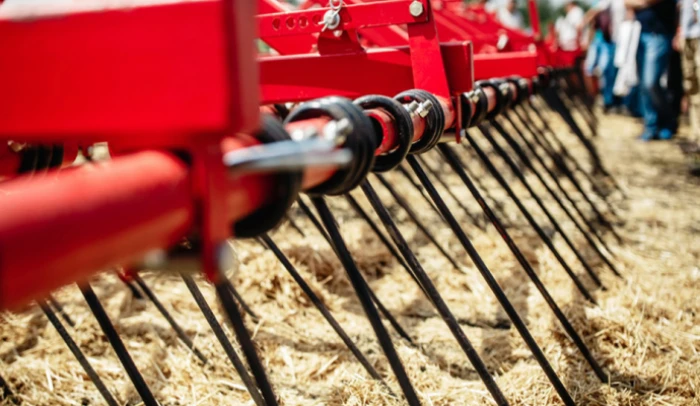

The spring tooth is made of high quality special steel with a special double heat treatment.
The diameter of the tooth is 16 mm, but due to the use of special steel with the application of special double hardening, which is an innovative technology of the company, the wear resistance of the tooth in the working area is significantly (2-3 times) increased, while maintaining high strength of the tooth in the area exposed to rotational loads
LIRA XL tooth life is 3 times higher than that of other manufacturers.

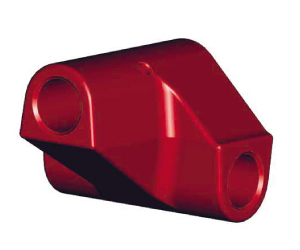

Unlike their welded counterparts, LIRA XL forged crosses provide consistently high strength and reliability regardless of the "human factor".
Overview of the heavy tooth harrow LIRA XL-15

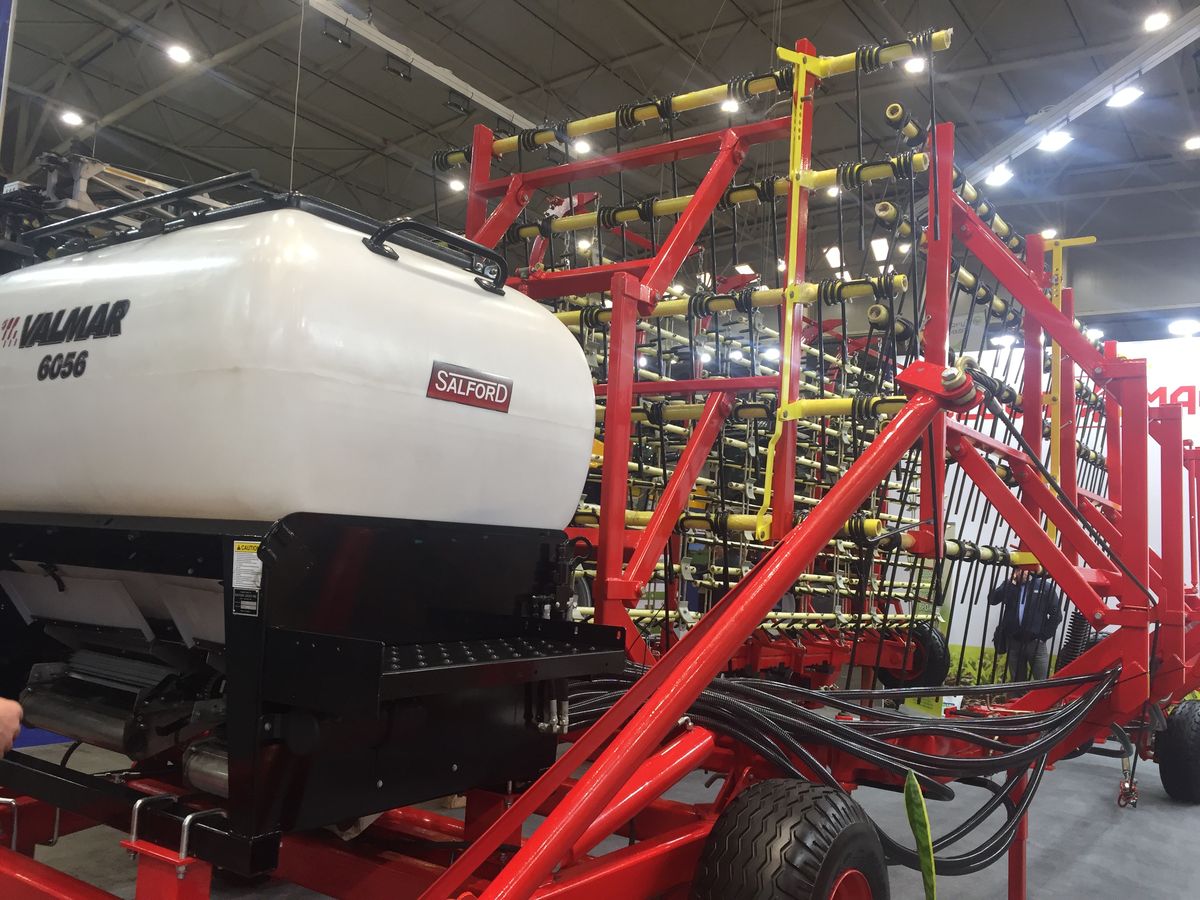

In addition to the basic operations (which the LIRA XL performs in one pass), you can equip this harrow with a special module for applying granular fertilizer.
The module consists of a robust, reliable design, a polyurethane tank and a precise metering system that ensures accurate application rates regardless of travel speed.
