Heavy duty disc harrow DUCAT GOLD-8
DUCAT GOLD-8 – Heavy disk harrow ДУКАТ GOLD-8
The DUCAT GOLD-8 heavy disc harrow is a versatile machine that performs all the functions required for tillage and seedbed preparation in stubble or uncultivated fields in one pass.
8
Working width
400 hp
Tractor power
semi-trailed
Coupling with tractor
Information
Characteristics
Downloads
Heavy duty disc harrow DUCAT GOLD-8

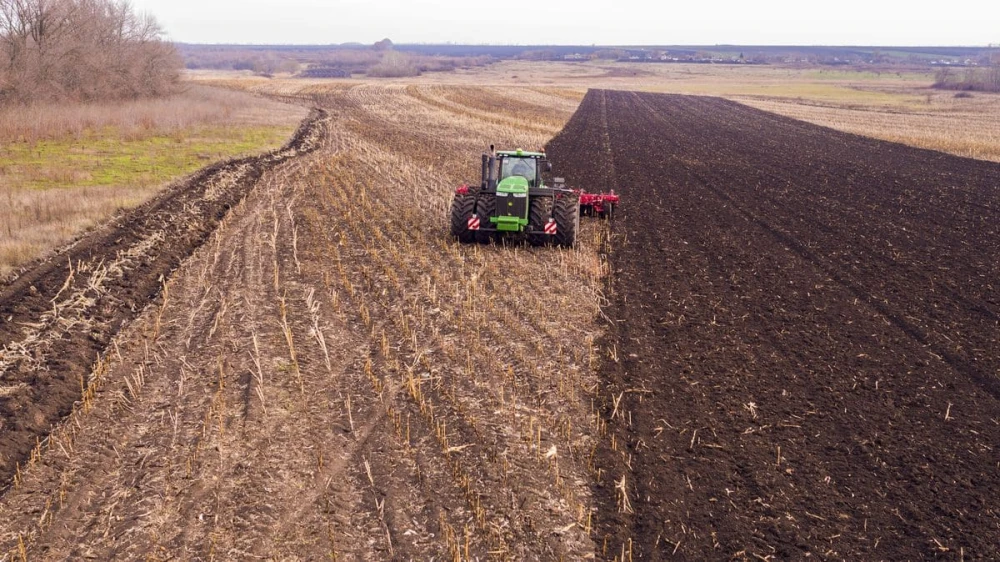

Робота DUCAT GOLD-8 восені.
| DUCAT GOLD-8 | United States customary units | |
|---|---|---|
| Working width, | 8 m | 26 ft |
| Tractor power | 400 hp | |
| Coupling with tractor | semi-trailed | |
| Basic weight | 13 459 kg | 29 672 lb |
| Number of discs | 50 | |
| Disc diameter | 724 mm | 28 '' |
| Load per disc | 270 kg | 595 lb |
| Heavy tine | spring block | |
| Operating depth, | 5-20 cm | 2-8 '' |
| Operating speed, | 10...17 km/h | 6-10 mph |
| Efficiency | 10.2 ha/h | 25.2 ac/h |
| Fuel consumption | 9 l/ha | 2,38 gal |
| Transport dimensions (length x width x height) |
7495 х 3970 х 4000 mm |
